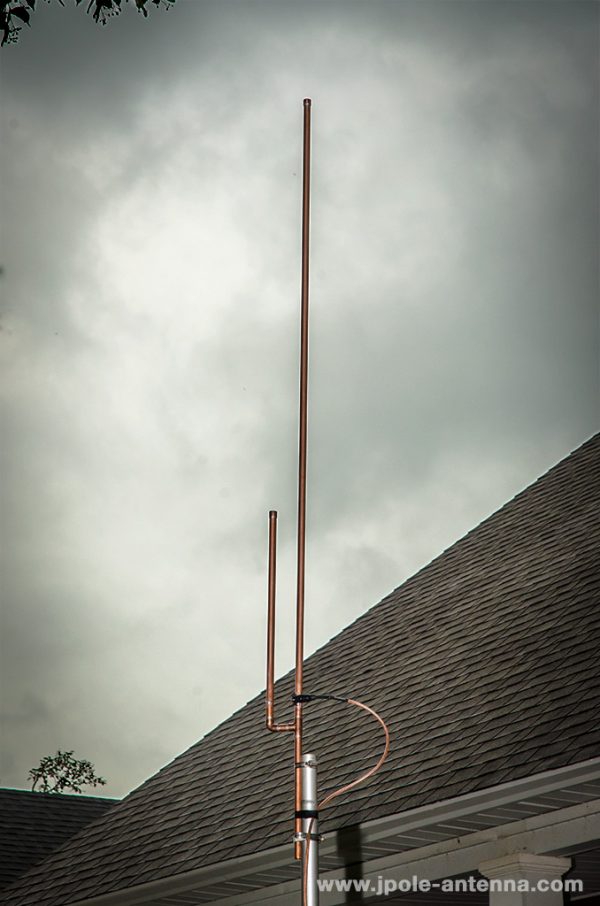

NOAA Weather / Railroad Band 160 – 162 Mhz J-Pole Antenna

$46.00$50.00

The NOAA Weather band antenna is perfectly tuned to receive the 162MHz NOAA weather radio broadcasts. If you are looking for an antenna for your weather radio, this is the one to get. Used and trusted by Emergency Managers, Public Safety Officials, Outdoor Event Venues, Schools, and Factories; this antenna will increase the range and signal strength for your weather radio, assuring you will receive critical alerts and messages from the National Weather Service.

The NOAA Weather and railroad band J-Pole is also big hit with railfans everywhere. This antenna is tuned to the 160-164 MHz railroad band and will give you superior performance over the antenna that came with your scanner. If you are serious about listening to the rail band, then this is the antenna for you.

This antenna is now delivered as a two piece breakaway model for easy storage and transport. The two piece antenna has the same specs and performance as the single piece model. Please see my article on shipping and product changes for more information

Clear

Description

Specs

  • Half wave antenna design features omnidirectional reception pattern
  • All copper construction for long durable life
  • 60 inches overall with an SO-239 connector soldered on

Who is currently using the NOAA Weather Band Antenna

  • Schools
  • Hospitals
  • Public Safety Agencies
  • Manufacturing Facilities
  • Event & Festival Grounds

This antenna also works on the 160-164 MHz Railroad Band

I live about a block away from the rail switch yard and it never ceases to amaze me of the amount of radio traffic you can hear from the train crews. This antenna will do a great job at picking up both the road and yard frequencies. If you want to know what trains are coming into town, or live near an active yard, I highly recommend this antenna. Nothing spices up a model railroad layout more than piping in the sound of actual railroad radio transmissions.

I just mounted my KB9VBR J-Pole and I can say that I am actually quite impressed with the results

I have the antenna mounted approx 30ft. on the roof of the house and I am pulling in Locomotives from about 30 miles away.The RR frequencies are really busy now that I have something to pull them in with.

I am picking up base units from well over 70+ miles with ease and can say this is the best $35 I have ever spent on an antenna.

The construction is top notch and I have a feeling this antenna will last me for a very long time. – Intrepid97

Attaching the antenna to your weather radio

Most weather radios, including the popular Midland WR-300 & WR-120, use an RCA jack for their antenna connector. You will need an adaptor and an appropriate length of cable to connect the radio to the antenna. Follow this link for instructions on how to connect an external antenna to these radios.

A second option is to use the RCA to F Female and PL-259 adapter kit. This kit consists of two connectors that allow you to use common RG-6 cable to connect your NOAA weather radio to an external antenna.



Additional information

Weight N/A
gain

3 db, 20 degree take-off angle

design

End-fed 1/2 wave vertical

bandwidth

4+- Mhz from center frequency (162 MHz)

construction

1/2 inch Type-M Copper tubing. Amphenol SO-239 connector

connector

N Female, SO-239
